Description
Elevate your automation and precision control projects with our Stepper Controller. Designed for engineers, makers, and automation enthusiasts, this controller is your key to achieving accurate and controlled motion of stepper motor in a wide range of applications. From 3D printers to CNC machines, our controller offers the reliability and flexibility you need for your projects.
Features :

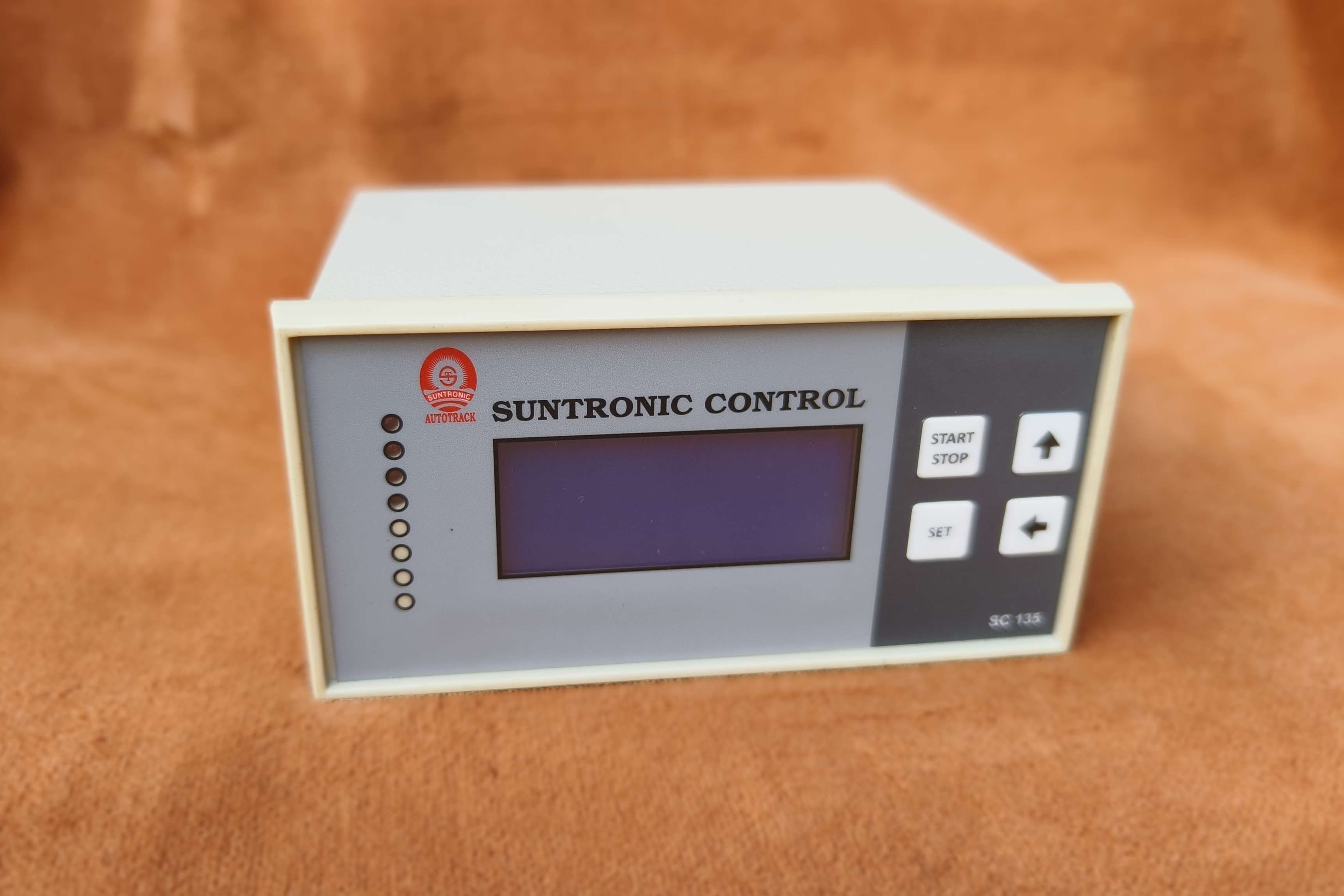

- Alphanumeric LCD Display : A 20x4 alphanumeric LCD provides a clear display of the status and settings, ensuring easy readability.
- Intuitive User Interface : Easy-to-understand menus and smooth navigation make the controller user-friendly and accessible.
- Activity LEDs : Built-in LEDs offer a quick and visual analysis of the controller's activity, enhancing user monitoring.
- Output Signals : Four general-purpose output signals enable the driving of external relays or cascading with other controllers for expanded functionality.
- High Pulse Rate : Capable of a high pulse rate of 50 KHz, allowing for microstepping usage and maintaining high motor speed.
- Adjustable Maximum Motor Speed : Users have the flexibility to set and adjust the maximum speed of the motor according to their specific requirements.
- Opto-Isolated Pulse Inputs : Three opto-isolated pulse inputs provide convenient connections to external signals for precise control.
- Linear Acceleration Ramping : Smooth linear acceleration ramping ensures that the motor achieves maximum speed efficiently.
- Divide Circle Functionality : The controller can divide the circle into set numbers, making it ideal for applications involving angular movement.
- Cut to Length Mode : Supports a "Cut to Length" mode for precise and accurate positioning.
- Configurable Gear Ratio and Microstep Settings : Users can configure gear ratios and microstep settings to suit their specific application needs.
- Manual Jogging : Manual jogging function with adjustable speed enables fine-tuned control of the motor's movement.
- Preset Degrees Movement : Allows users to move preset degrees and start/stop either through pulse input or Keypad button.
- Continuous Speed Control : Provides continuous speed control for specific applications with a terminal for connecting an external Volume type Pot.
- Sequence Programming : Programmable for a sequence of up to 170 instructions, offering advanced automation capabilities.
Application
- 3D Printing : Precise control of the printer's extruder and bed positioning.
- CNC Machining : For controlling the movement of cutting tools in milling machines, lathes, and routers.
- Robotics : To control the motion of robot arms, grippers, and other mechanisms.
- Automation Systems : In conveyor systems, pick-and-place machines, and manufacturing lines.
- Laboratory Equipment : For controlling precise sample handling and testing equipment.
- Telescope Control : To adjust the positioning of telescopes for tracking celestial objects.
